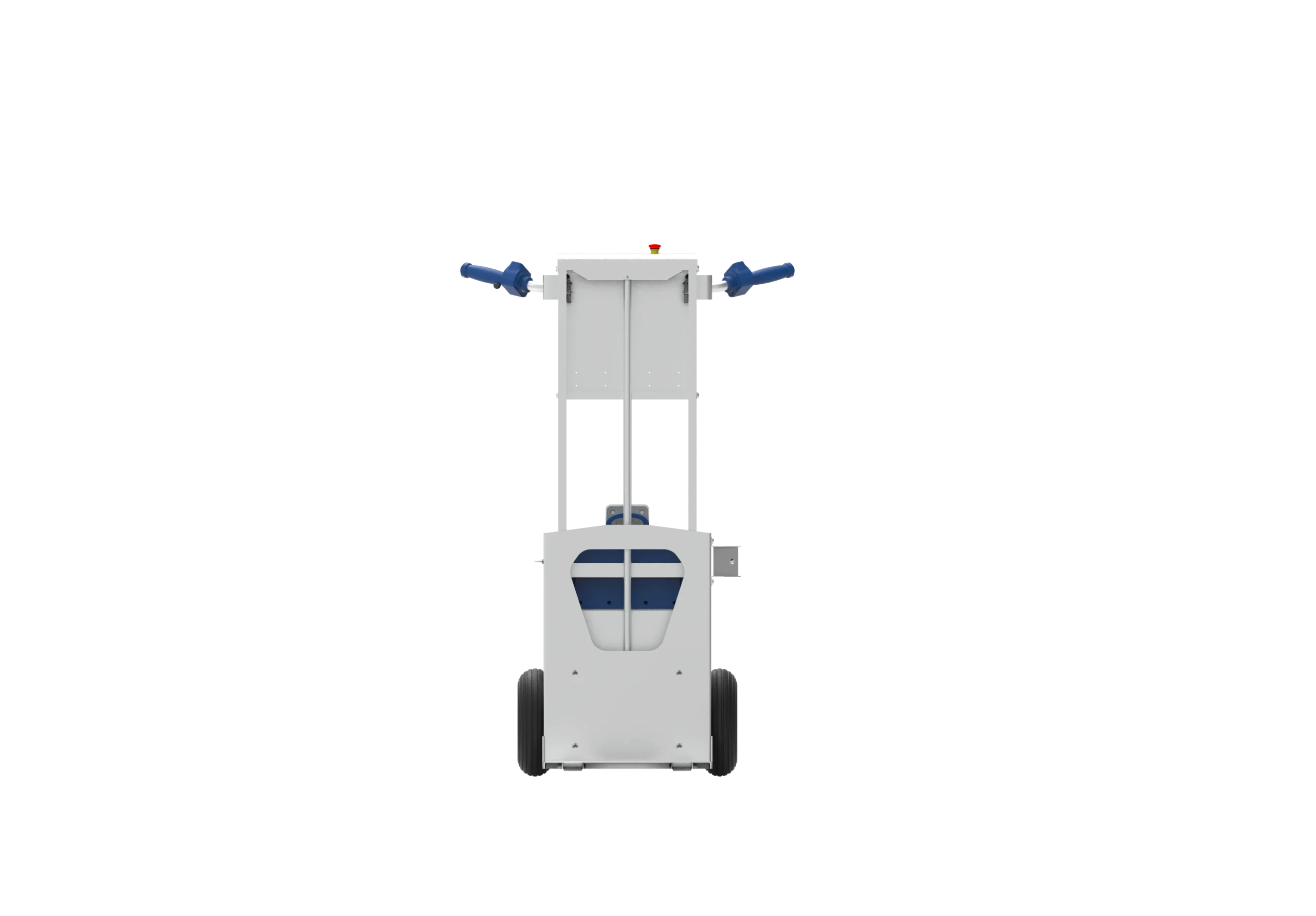

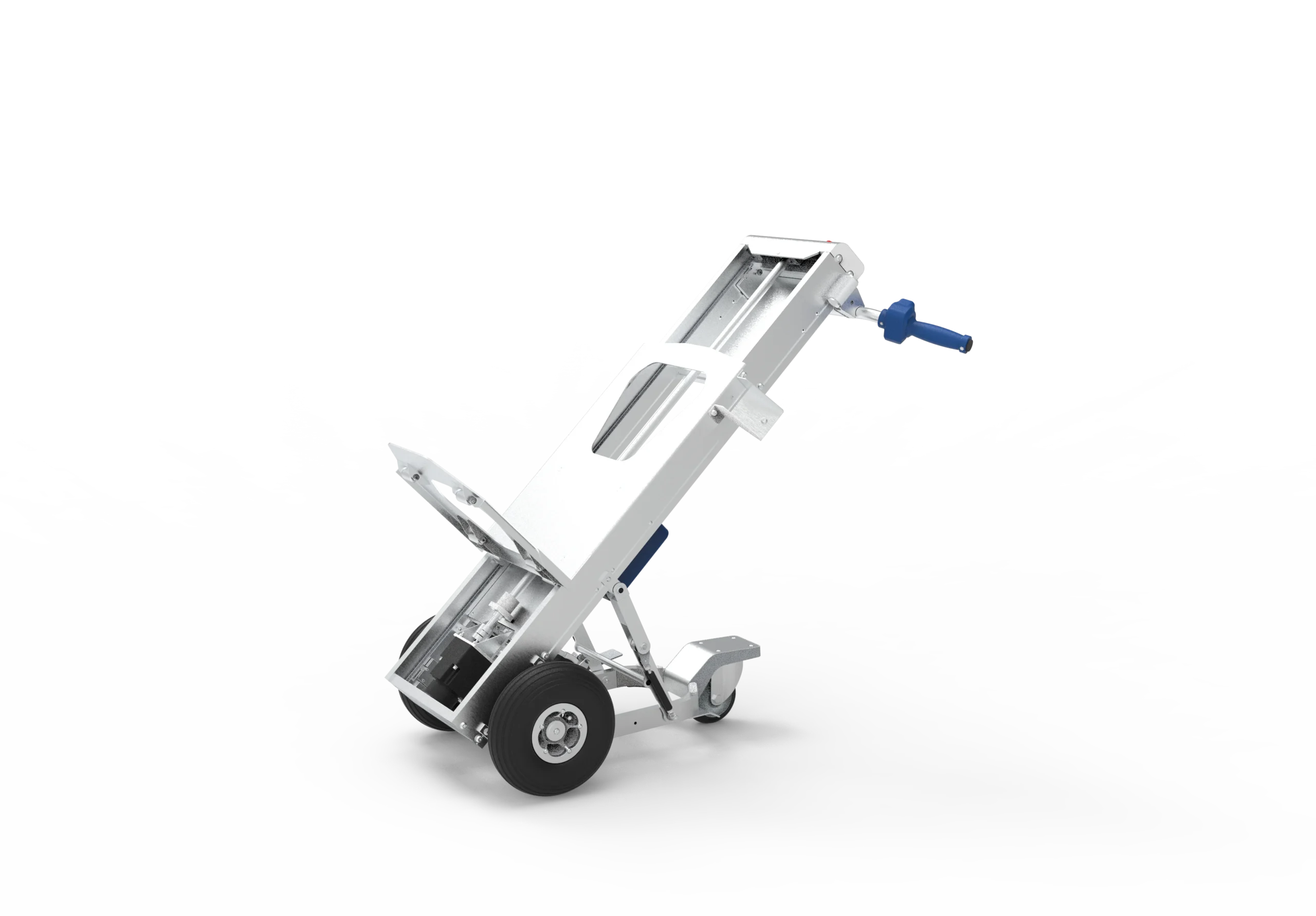

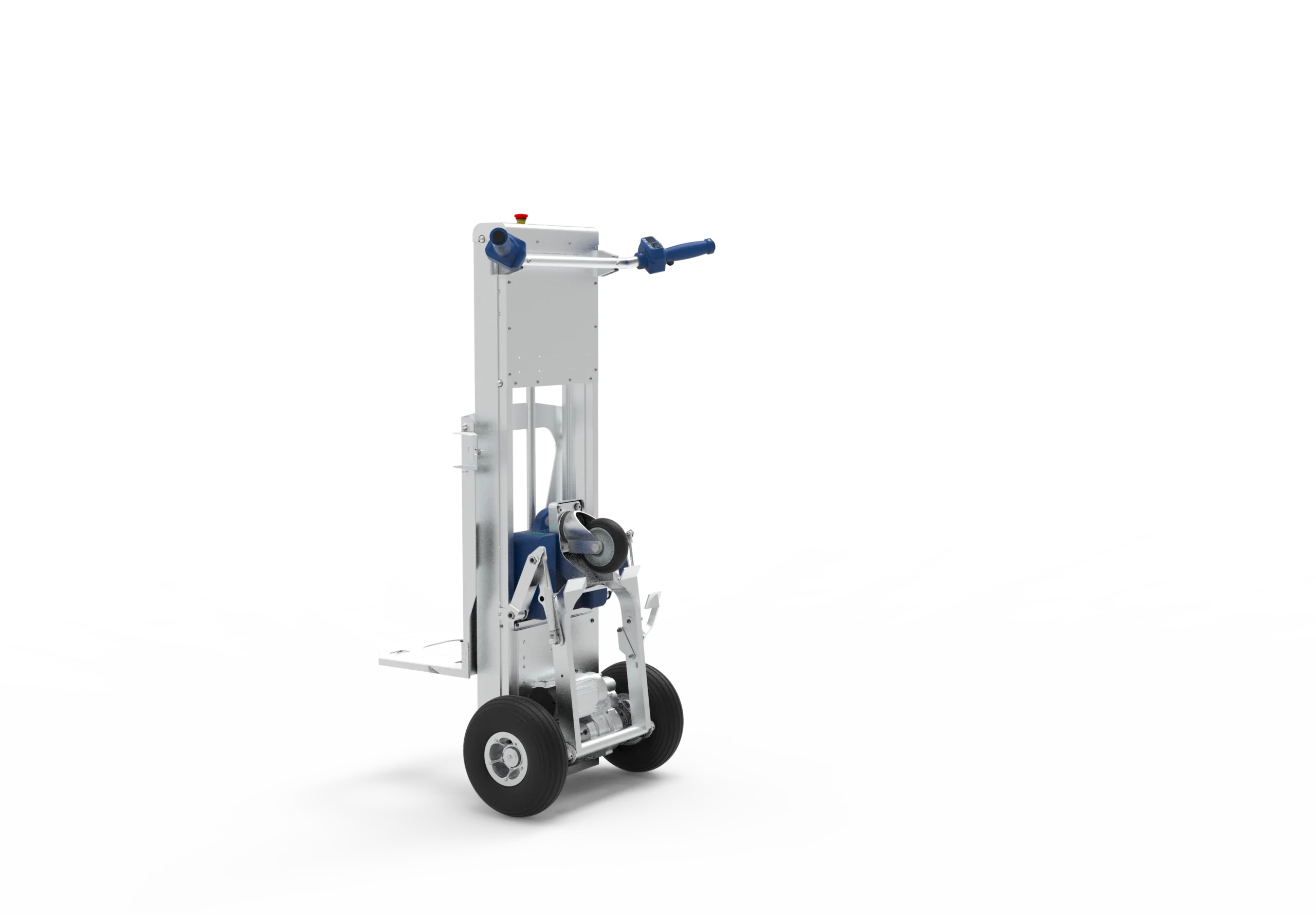

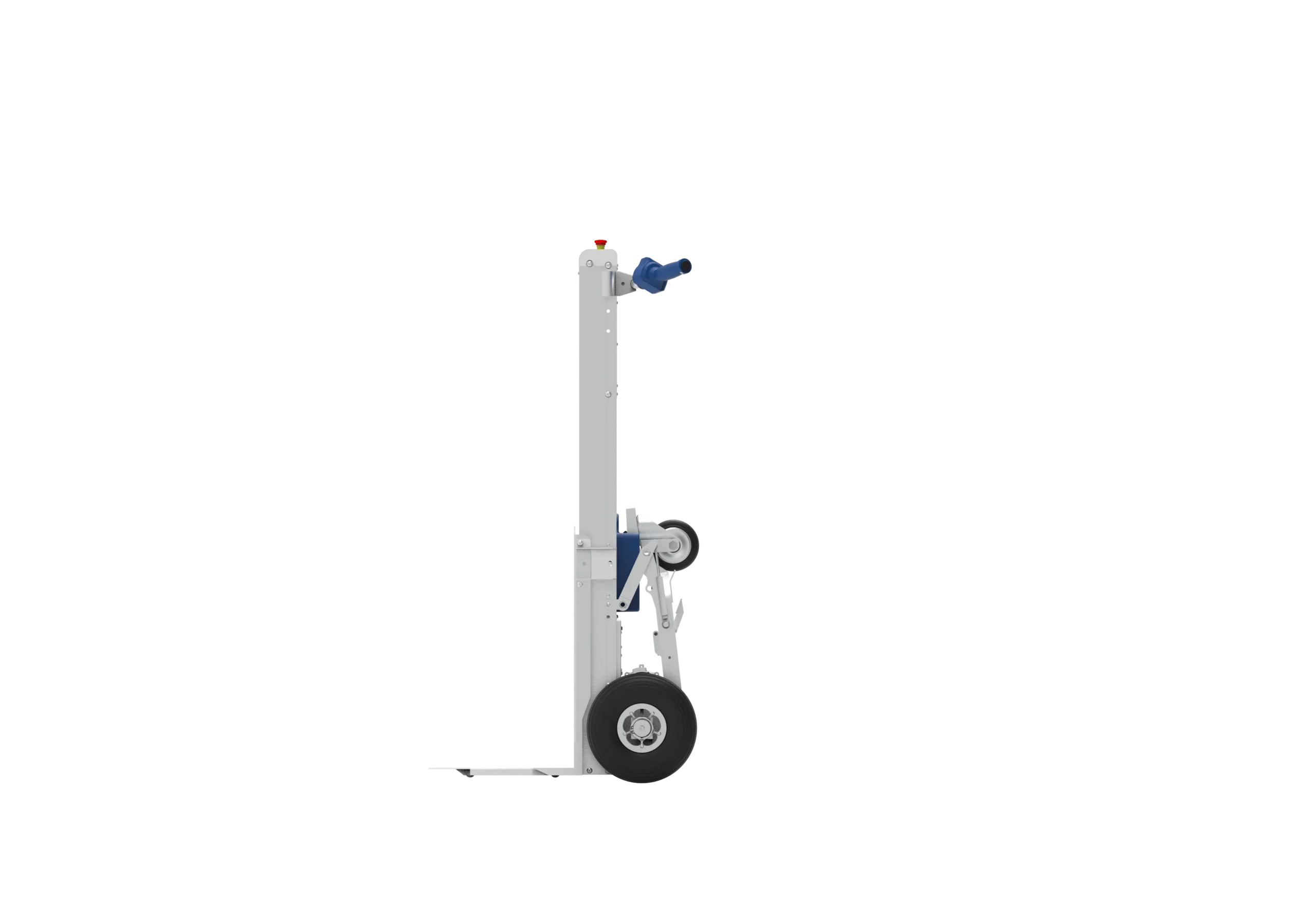

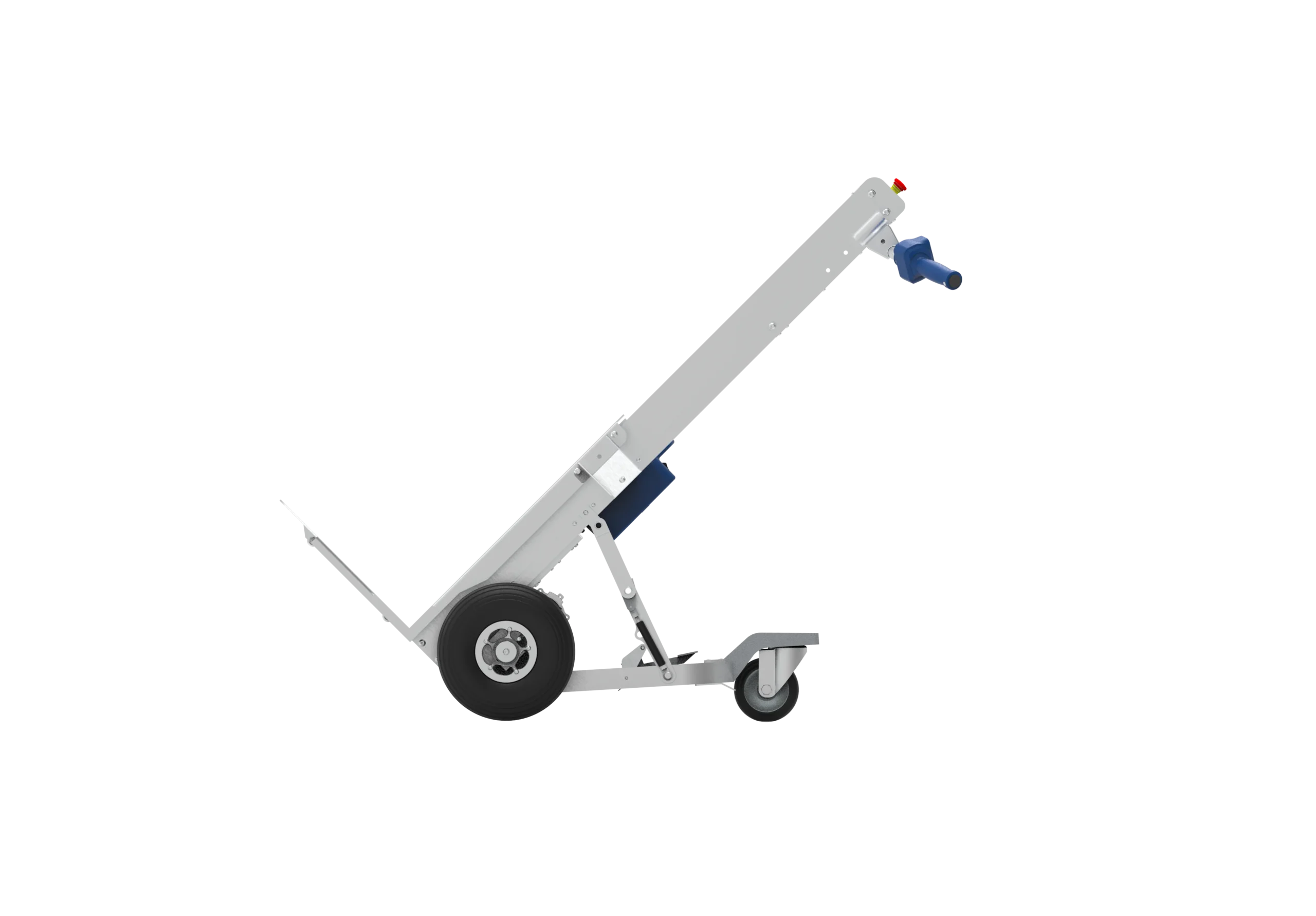

Electric Moving Trolley LFC170F3

Item Details

• Lifting Control Handle Loading Plate Rising/Falling
• Safety Quickly Pull Out/Put Away to Secure Cargo
• Moving Control Handle Forward/Backward High Speed/Low Speed

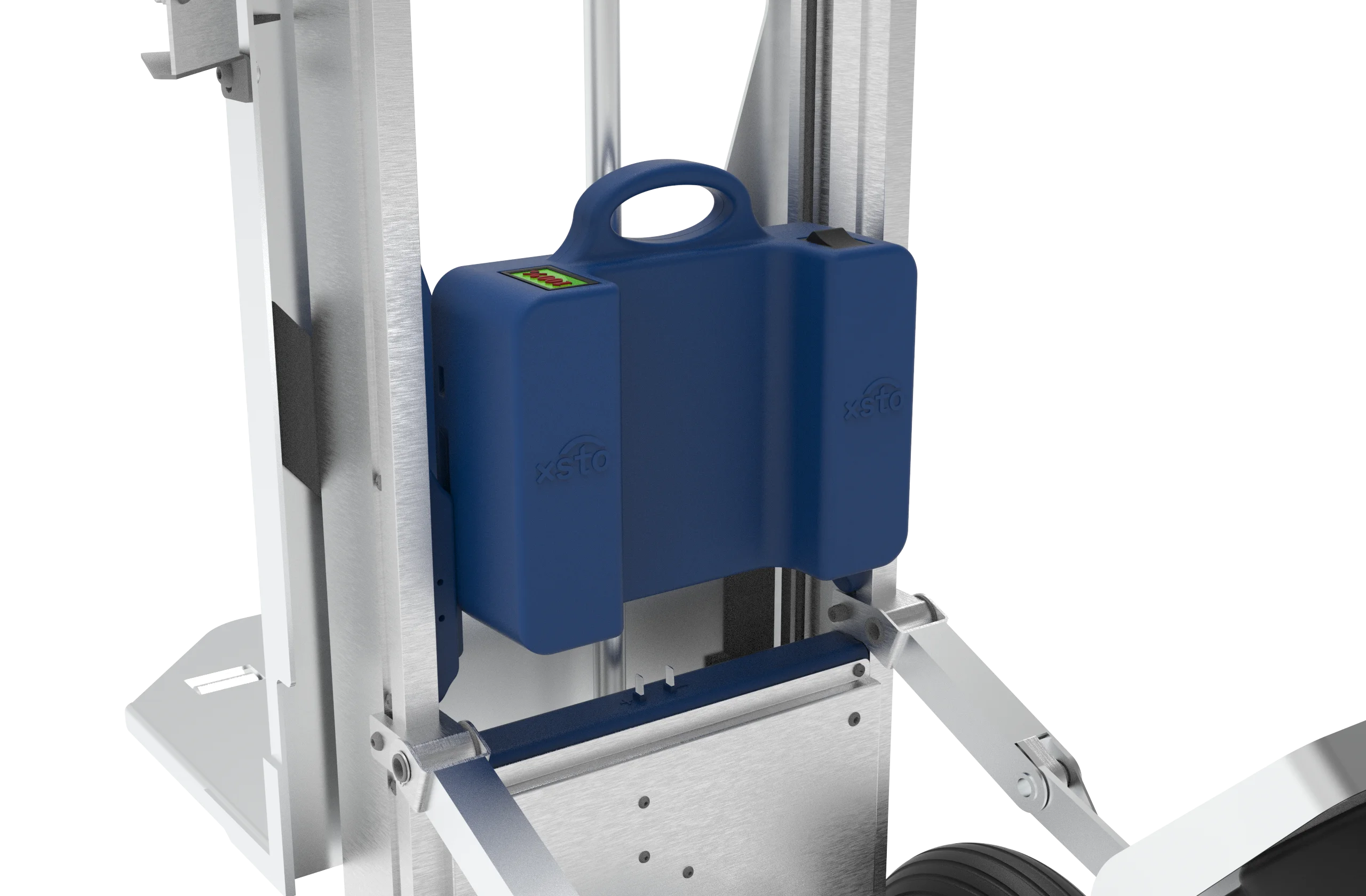

• Battery Play And Plug With Auto Connection Independent Switch, Display battery level and voltage
• Lifting Lead Screw Ball Screw, More Stable Rising/Falling for Loading Plate
• Pedal Switch

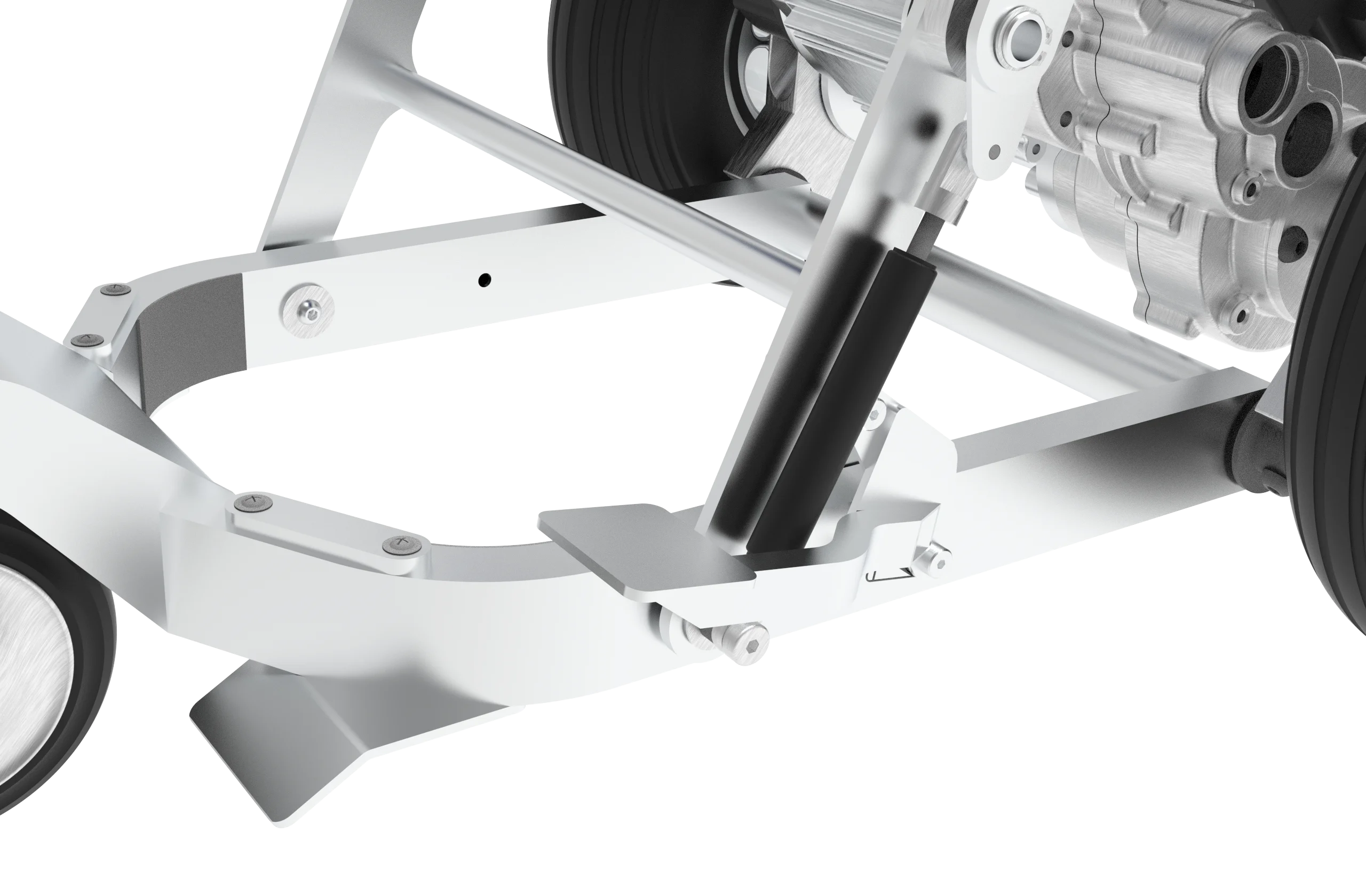

• Expanded Condition Auxiliary Ground Support Wheel  Auxiliary Casters for Easy Movement
• Auxiliary Moving Wheels Metal Auxiliary Wheels for Plane Motion
• Loading Board Structure with Reinforced Welding, Alloy Steel Material
• Brake Motor Switch-off Power, Manual Operating
• Driving Wheel Wear-resisting Rubber, Shockproof Pneumatic Tyre

Technical Parameter

• Item Weight 53.8KG
• Maximum Capacity 170KG
• Max Lifting Height 800MM
• Lithium Battery 48V/10Ah
• Maximum Climbing Gradient 15 ํ
• Auxiliary Ground Support Wheel YES
• Handrail Optional
• Motor Brake YES
• Output Motor Parameter 48V120W
• Driving Motor Output 48V500W
• Noise Level <70dB
• Protection Grade IP33

Video Electric Moving Trolley LFC170F3
